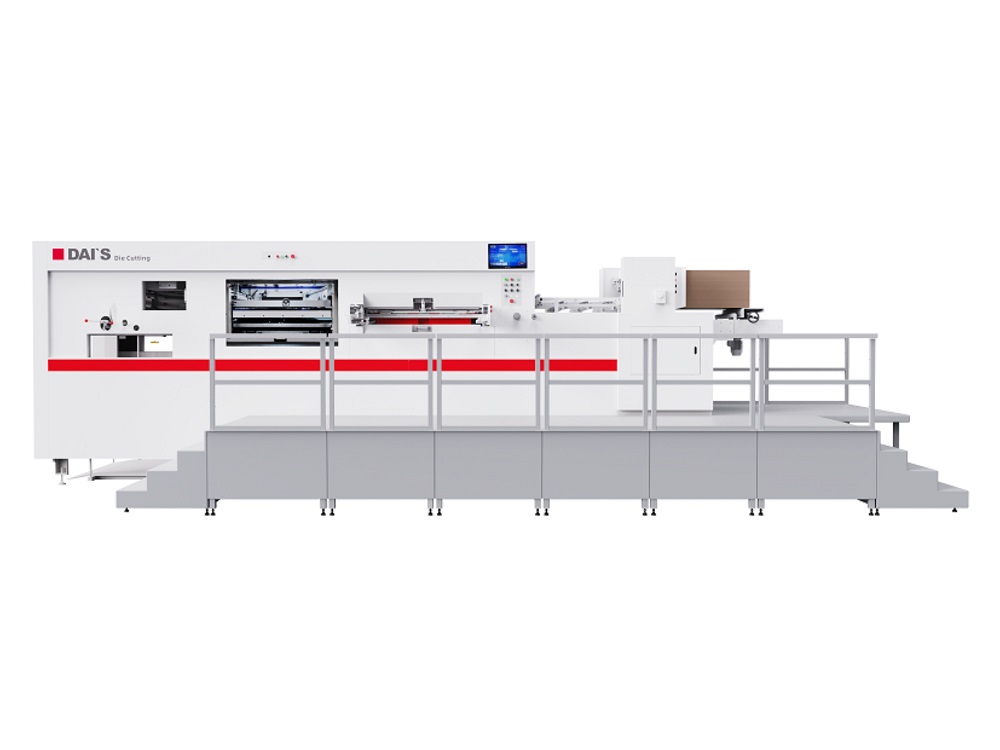

Automatic Die Cutting Machine with stripping unit D1300QY1 D1500QY1 D1650QY1 D2050QY1

This machine is mainly used for die cut the corrugated board. From feeding to delivery, the whole working process is fully automatic. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine

online service

Tel:+86-13958839812

Email: export@chinacutter.net

Introduction

This machine is mainly used for die cut the corrugated board. From feeding to delivery, the whole working process is fully automatic. The working status and troubleshooting can be indicated with the interface equipped on the machine. To keep machine running stable, all the key components and controller system are imported brand. To ensure the safety operation, the sensors and safety devices are equipped on the machine


Technical Parameters

Model  D1300QY1 D1500QY1 D1650QY1 D2050QY1
Max. Feeding Paper Format  1300×950mm 1500×1100mm 1650×1200mm 2070×1420mm
Min. Feeding Paper Format  550×480mm 550×500mm 650×520mm 800×700mm
Max. Die cutting Format 1290×920mm 1490×1090mm 1630×1180mm 2050×1400mm
Max. Working Pressure 350t 400t 400t 450t
Paper Range Corrugated≤8mm(max) Corrugated≤8mm(max) Corrugated≤8mm(max) Corrugated≤8.5mm(max)
Cardboard≥250g Cardboard≥250g Cardboard≥250g Cardboard≥250g
Die cutting Precision ±0.25 mm ±0.25 mm ±0.25 mm ±0.3mm
Max. Speed 6500sheets/hour  5500sheets/hour  5000sheets/hour  3500 sheets/hour
Max. Feeding Pile Height 500mm 500mm 500mm 600mm
Max. Delivery Pile Height 1200mm 1200mm 1300mm 1300mm
Main Motor Power Consumption 15kW 18.5kW 18.5kW 30kW
Total Power Consumption 33.5kW 37.5kW 37.5kW 61kW
Total Weight 20t 23t 26t 48t
Dimension (L×W×H) 8533×4397×2324mm 10000×4580×2487mm 11900×4762×2542mm 13006×5272×3060mm
