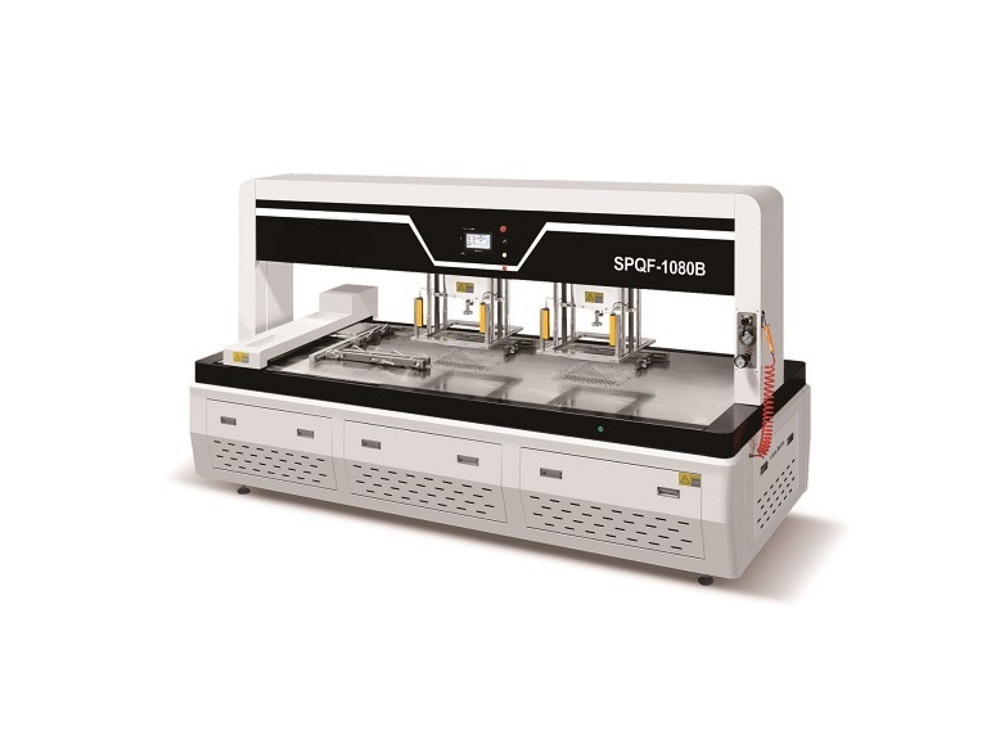

Blank Separator SPQF-920B SPQF-1080B
Introduction
SPQF series automatic blank separator machine is the professional equipment for automatic stripping folding boxes, tags, hangers, IML, paper labels, blister cards and plastic packaging
Technical Parameters
Model
SPQF-920B
SPQF-1080B
Max sheet size(mm)
920x650
1080x780
Min sheet size(mm)
550x280
600x400
Max pile height(mm)
100
100
Min pile height(mm)
40
40
Bench height(mm)
850
850
Max stripping size(mm)
360x360
550x550
Min stripping size(mm)
30x30
30x30
Stripping speed(times/min)
25
25
Max pressure(bar)
80
90
Machine dimension(mm)
3300x1560x1900
3750x1800x1900
Machine Weight(kg)
2000
2400
Power Voltage(V)
360-420
360-420
Frequency(HZ)
50/60
50/60
Max consumption power(KW)
3.75
5.5
Insurance electrical current(A)
10
10
Air consumption(L/min)
2
2
Air compression(Bar)
4-7
4-7
Input power(phase)
3
3
