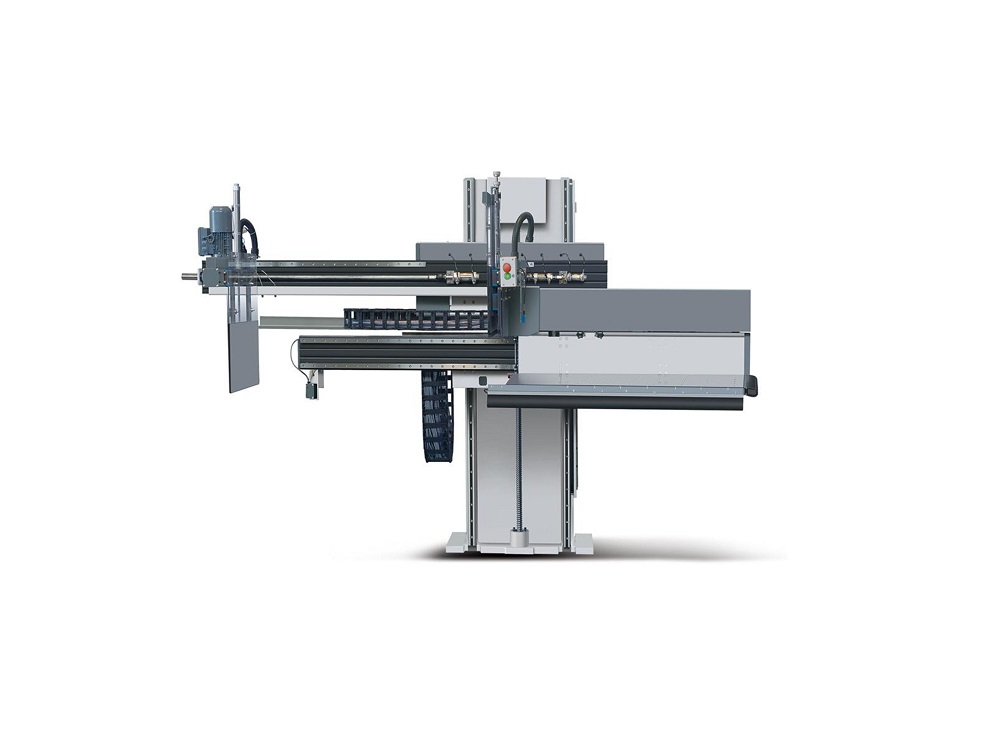

Loader & Unloader
Loader and unloader are key auxiliary equipment for the intelligent cutting line. The intelligent cutting line consisted of loader, paper cutting machine and unloader is capable to automatically load, jog, transport and unload the paper. It features the high efficiency, low labor intensity and short make-ready time.
Introduction
Loader and unloader are key auxiliary equipment for the intelligent cutting line. The intelligent cutting line consisted of loader, paper cutting machine and unloader is capable to automatically load, jog, transport and unload the paper. It features the high efficiency, low labor intensity and short make-ready time.
Features
Equipped with infrared detector to realize precise pile positioning
Equipped with anti-collision bumper
Pneumatic soft grip to ensure the sheet corners no deformation
10” touch sensitive LCD
Overload protection available
Chrome-plated working table installed with air cushion.
Technical Parameters
| BE incorporating with 115 & 137 Paper Cutting Machine | ||
| Description | Loader | Unloader |
| Machine Length (mm) | 3300 | 3300 |
| Machine Length plus guardrail (mm) | 3500 | 3500 |
| Machine Width (mm) | 1700 | 1700 |
| Machine Height (mm) | 2200 | 2200 |
| Working Table Length(mm) | 1400 | 1700 |
| Working Table Width(mm) | 1100 | 960 |
| Max. Sheet Size (mm) | 1000x1350 | 960x1260 |
| Min. Sheet Size (mm) | 800x700 | 650x500 |
| Max. Pile Height (mm) | 1500 | 1500 |
| Max. Loading Capacity (kg) | 200 | 200 |
| The time of one working cycle (s) | 25-45 | 20-35 |
| Power (kW) | 3 | 3 |
| Weight (t) | 1.5 | 1.5 |
| BE incorporating with 164 Paper Cutting Machine | ||
| Description | Loader | Unloader |
| Machine Length (mm) | 5200 | 5200 |
| Machine Length plus guardrail (mm) | 5300 | 5300 |
| Machine Width (mm) | 2100 | 2100 |
| Machine Height (mm) | 2400 | 2400 |
| Working Table Length(mm) | 1700 | 1700 |
| Working Table Width(mm) | 1250 | 1250 |
| Max. Sheet Size (mm) | 1700x1300 | 1650x1250 |
| Min. Sheet Size (mm) | 800x700 | 650x500 |
| Max. Pile Height (mm) | 1600 | 1600 |
| Max. Loading Capacity (kg) | 200 | 300 |
| The time of one working cycle (s) | 30-50 | 20-35 |
| Power (kW) | 4 | 4 |
| Weight (t) | 2.3 | 2.3 |
